Some armor has default vest sizes. Using a sizing chart you can estimate the closest generic size, however ordering with a sizing form will always give you the most accurate sizing.
Female vests should always be ordered with a sizing for a proper fit. In some cases male vests could be used, but it is usually not recommended.
To estimate your size to the closest generic vest size:
Measure your chest and add 2, i.e. 40+2=42.
Measure your waist and add 6, i.e. 38+6=44.
Pick the larger of the two, in this case 44.
If you have more than 6 between these two numbers average them out and if necessary round up to the nearest even number, i.e. 48μ40=44.
Measure your front length while sitting.
(Clavicle to above the navel)
13 to 14 = R and 15 to 16 = L
If your vest rises up when sitting, the SSBS Neoprene straps can be trimmed to raise the vest.
NOTE: In this case, please call us so as not to damage the product and void your warranty.
Understand that these are estimations for a quick fit; for a proper fit, it's always best to order with a sizing form. The professionals at Vantage Armor can walk you through the process if you have any questions.
How to tell if your concealable body armor fits correctly: Concealable body armor should cover your center mass vitals, and achieve anywhere from a 2-inch gap on each side (for the most mobility) to overlapping of the ballistic panels on the sides where the front and back panels meet (for the most protection).
The first thing to remember when trying on vests is that your front panel should always lay over your rear panel as threats typically come from in front of you, and this ensures that the overlap on the side of the vest is rear-facing.
A correctly sized vest will cover you from 1-1.5 inches below the top of your breastbone to 1-2 inches above your navel (belly button) in length. The width, as mentioned earlier, should achieve anywhere from a 2-inch gap to 1" of overlapping where the front and rear panels meet. Your personal preference may dictate minor variations in comfort, mobility, concealment, and protection.
A vest that is too small for the user will lack the needed coverage to ensure proper protection with large gaps of coverage as well as being too tight and constricting, whereas a vest that is too large will shift, bunch, and crumple while it's being worn, causing pinch points and poor protection. It is a crucial step when buying body armor to ensure that it fits properly so that it performs at its peak level.
If you have any questions at all about armor sizing, don't hesitate to call us. Our highly trained staff will assist you in getting the best fit possible.
For charts, choose from one of our available sizing charts below.

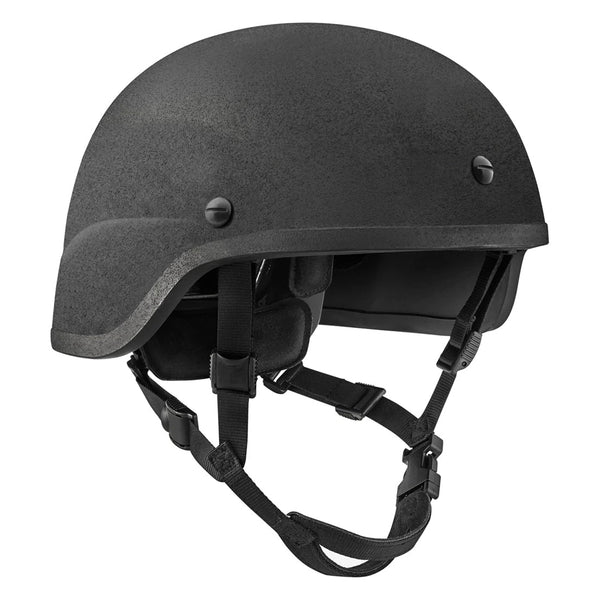

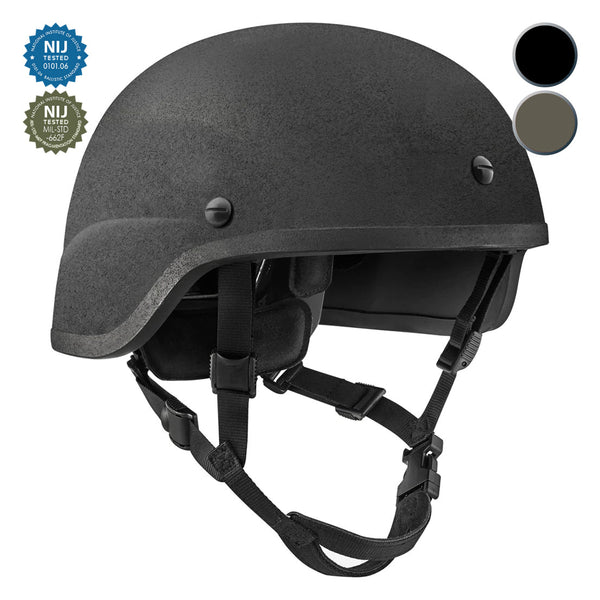

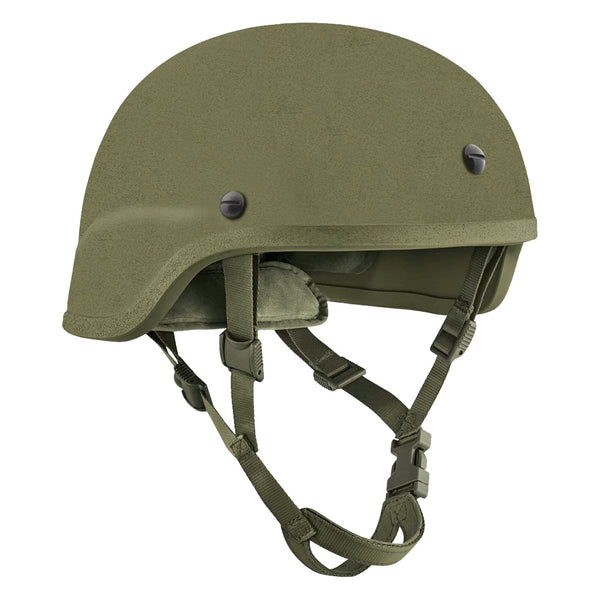

THE BATLSKIN VIPER® A5 HELMET provides protection from trauma – blunt force and ballistic. Manufactured to meet stringent quality standards, the Viper A5 helmet strikes the ideal balance between reliable protection and exceptional value.
Choose between the Mission Ready, MR-01 configuration which includes:
Viper A5 Helmet Shell (Full or High Cut) Viper Front Mount Viper Interlocking Rails Modular Suspension System (MSS) Hardware Kit
And the MR-17 configuration:
Viper A5 Full or High Cut Helmet Shell (Drilled single hole for Front-Mount & Side Rails) Modular Suspension System (MSS) Hardware Kit **Front Mount & Side Rails not included**
Features:
Monolithic Aramid material in modified ACH shape
Available in four (4) sizes, one (1) cut with two (2) suspension/retention options

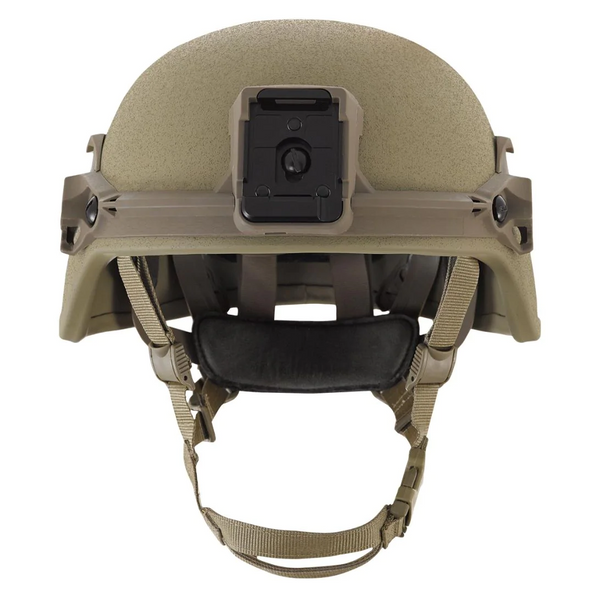

Additional modular accessories (Front Mount, Interlocking Rails, Velcro) take from Clean to Mission-Ready configuration
Compatible with Face Shields, NVGs, Chem/Bio Masks and Communication Devices
5-year warranty*
Designed to the Following Performance Standards:
Modified and abbreviated NIJ 0106.01 / NIJ 0101.06 IIIA THREATS
Modified and abbreviated NIJ 0106.01 / NIJ 0108.01 IIIA THREATS
Modified and abbreviated US MIL-STD 662F using 17gr Fragmentation Simulated Projectile (FSP)
US Army CO/PD-05-04 dated October 30th, 2007
Specifications:
AREAL DENSITY: 2.33 lbs/ft2 (11.35 kg/m2)
THICKNESS: 0.35 in (8.9 mm)
CUT STYLES: Full Cut, High Cut
SHAPE: Modified ACH

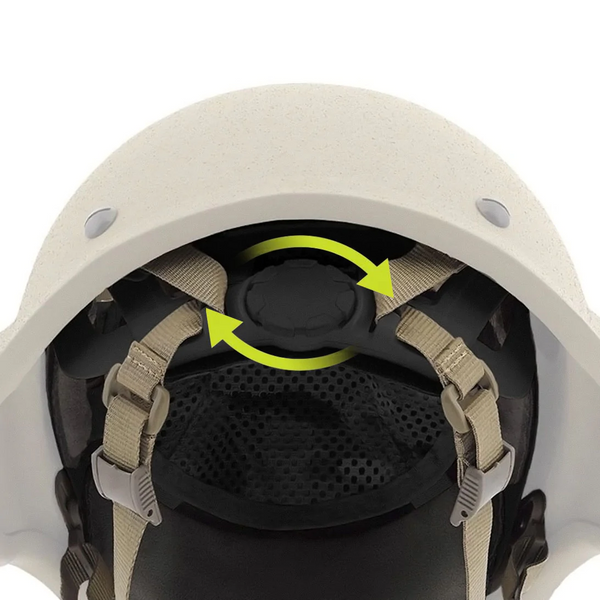

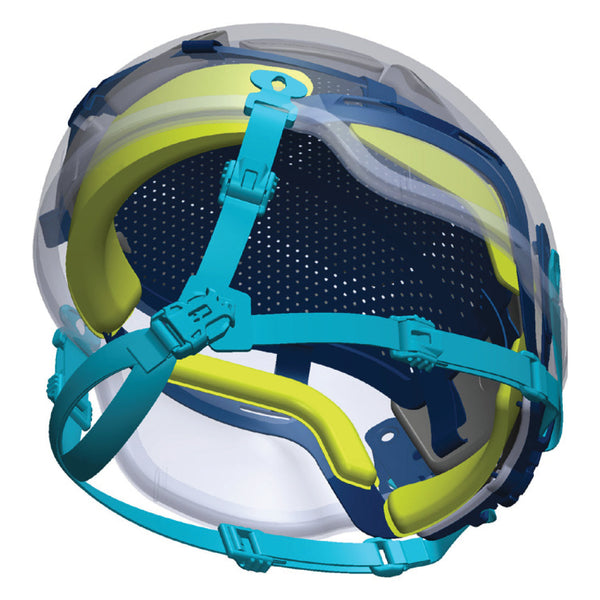

Modular Suspension System (MSS):
Breathable, sweat-wicking netting provides a free flow of air
Adjustable net straps offer customizable crown height fit
Dial ratchet mechanism adjusts fitband circumference for secure fit
Fitband dog legs adjust height of nape pad for stability and comfort
Low profile impact material does not contact head during normal operation
4-point integrated harness with unique buckle system (no loose straps) and
tensioners enable easy adjustment
Sizing Specifications:
Small
Medium
Large
X-Large
Circumference
20 ⅝ - 22 ½ in (525 - 570mm)
21 ½ - 23 ¼ in (545 - 590 mm)
22 ½ - 24 ¼ in (570 - 615 mm)
22 ⅞ - 24 ⅜ in (580 - 620 mm)
Coverage
167 in2 (1076 cm2)
180 in2 (1163 cm2)
187 in2 (1205 cm2)
193 in2 (1242 cm2)
Weight (shell)
2.65 lbs (1.2 kg)
2.87 lbs (1.3 kg)
3.00 lbs (1.36 kg)
3.22 lbs (1.46 kg)
Weight (system)
3.19 lbs (1.45 kg)
3.42 lbs (1.55 kg)
3.57 lbs (1.62 kg)
3.80 lbs (1.72 kg)
Protection Information:
Designed To
Performed To
Threat
NIJ 0106.01 / NIJ 0101.06 IIIA Threats
.357 Sig
1440 - 1500 ft/s (439 - 457 m/s)
Pass
.44 MAG SJHP
1400 - 1460 ft/s (427 - 445 m/s)
Pass
Threat
NIJ 0106.01 / NIJ 0108.01 IIIA Threats
9mm
1350 - 1450 ft/s (411 - 442 m/s)
Pass
.44 Mag SWCGC
1350 - 1450 ft/s (411 - 442 m/s)
Pass
Projectile
V50 BL(P)
17-grain FSP
2200 ft/s (671 m/s)
2380 ft/s (725 m/s)
Shot Location
9mm RTP/BTD at Velocity of 1400 ft/s (427 m/s)
Crown
16.0 mm (0.63 in)
3.9 mm (0.15 in)
Left
16.0 mm (0.63 in)
9.4 mm (0.37 in)
Right
16.0 mm (0.63 in)
8.3 mm (0.33 in)
Front
25.4 mm (1.0 in)
11.2 mm (0.44 in)
Rear
25.4 mm (1.0 in)
8.3 mm (0.33 in)
Blunt Impact Specifications:
Designed to < 150G in all locations for 10 ft/s (3 m/s) impact
Performed to average 81G
Environmental Conditions:
Designed to Ambient 70°F (21°C), Immersion in seawater at 70°F (21°C) IAW ASTM D1141-98 (Applicable to BTD - 9mm, 124gr, FMJ RN, post conditioning)
